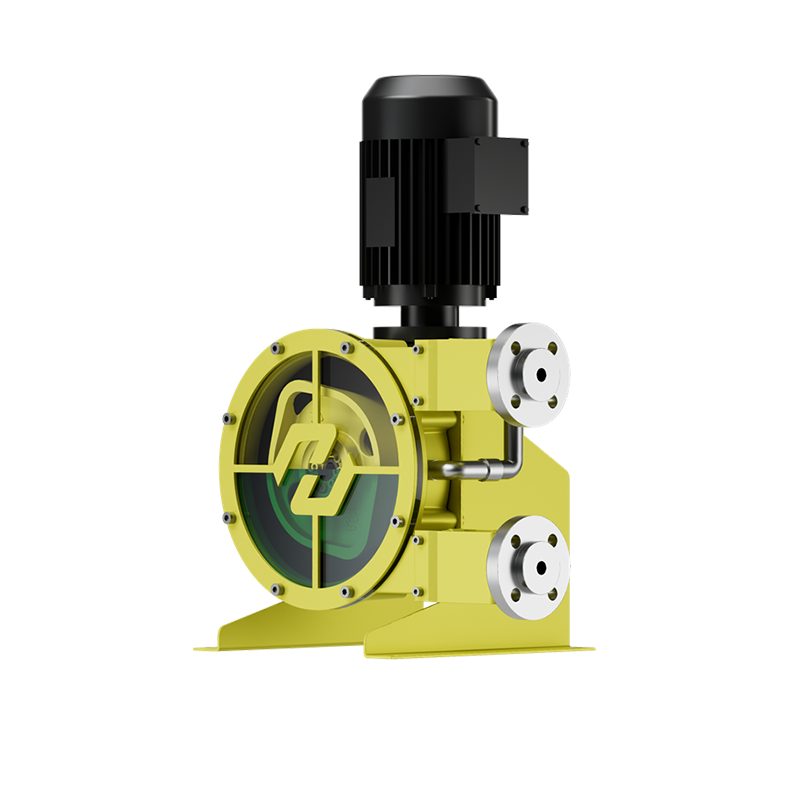

HH Series Hose Pump
The HH series uses high-quality imported high-pressure composite rubber for higher output pressure. It employs a shoe sliding compression structure.

Inquiry Now
Product Introduction
> Integrally cast, fully sealed head, ductile iron material.
> Pear-shaped pump cover and sight glass.
> O-ring seals at inlet/outlet ports.
> Sliding compression, with specialized lubricant.
> Modular design, separate pump head and gear motor.
> Spline connection.
> Heavy-duty double bearing support.
> Cooling ribs for heat dissipation.
> Smart IoT intergration. Integrated control box, automatic alarm and shutdow protection for leakage and overpressure.
Technical Data

Flow Curve Table (L/h)

Model 1rpm 10rpm 20rpm 30rpm 40rpm 50rpm 60rpm 70rpm 80rpm 90rpm 100rpm 110rpm
HH05 (3lobes) 0.4 4 8 12 16 20 24




HH05 0.43 4.3 8.6 12.9 17.2 21.5 25.8




HH10 (3lobes) 1.25 12.5 25 37.5 50 62.5 75 87.5



HH10 1.45 14.5 29 43.5 58 72.5 87 101.5 116 130.5 145 159.5
HH15 (3lobes) 4.9 49 98 147 196 245 294 343 392 441 490 539
HH15 5.5 55 110 165 220 275 330 385 440 495 550 605
HH20 (3lobes) 8.37 83.7 167.4 251.1 334.8 418.5 502.2 585.96 669.6 753.3 837 920.7
HH20 9.3 9 186 279 372 465 558 651 744 837 930 1023
HH25 19.5 195 390 585 780 975 1170 1365 1560 1755 1950 2145
HH32 45 450 900 1350 1800 2250 2700 3150 3600 4050 4500 4950
HH40 63 630 1260 1890 2520 3150 3780 4410 5040 5670 6300 6930
HH50 176.5 1765 3530 5295 7060 8825 10590 12355 14120 15885

HH60 257 2570 5140 7710 10280 12850 15420 17990 20560 23130

HH65 328 3280 6560 9840 13120 16400 19680 22960 26240 29520

HH80 780 7800 15600 23400 31200 398000 46800
