Hose pump

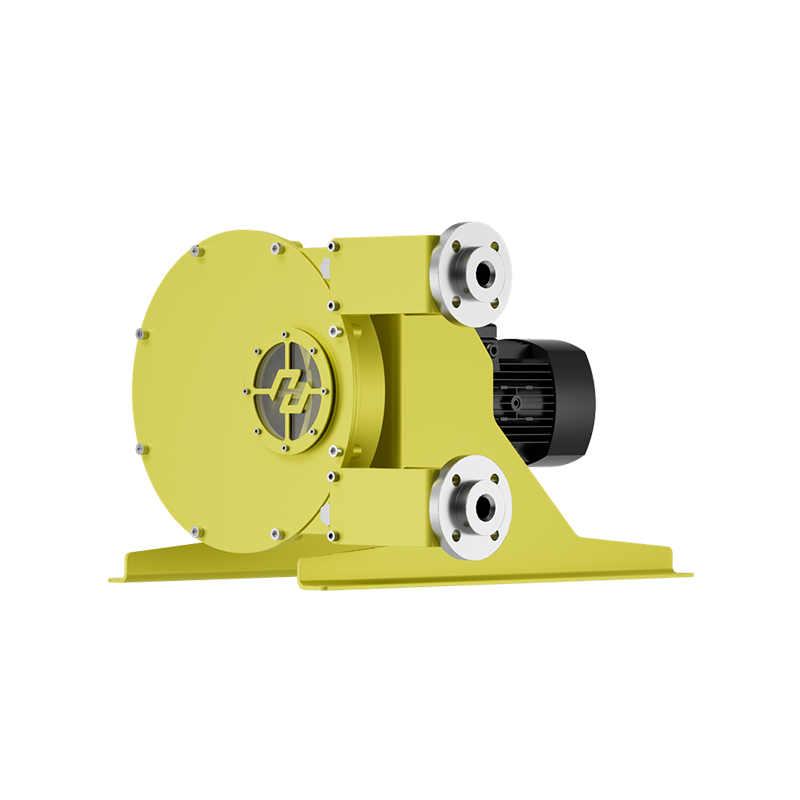

ABH Series Hose Pump

The ABH series uses domestically produced hoses, delivering higher outlet pressure. It employs a shoe compression structure, resulting in stable outlet pressure and low pulsation.

Inquiry Now

Product Introduction

> Integrally cast, fully sealed head, ductile iron material.

> Circular cover and sight glass.

> Gland packing seals at inlet/outlet ports.

> Sliding compression, with specialized lubricant.

> Expansion bushing connection.

> Leakage alarm.

Technical Data

Flow Curve Table (L/h)

Model	1rpm	10rpm	20rpm	30rpm	40rpm	50rpm	60rpm	70rpm	80rpm	90rpm	100rpm	110rpm
ABH05 (3lobes)	0.37	3.7	7.4	11.1	14.8	18.5	22.2
ABH05	0.4	4	8	12	16	20	24
ABH10 (3lobes)	1.1	11	22	33	44	55	66	77
ABH10	1.25	12.5	25	37.5	50	62.5	75	87.5	100	112.5	125	137.5
ABH15 (3lobes)	4.5	45	90	135	180	225	270	315	360	405	450	495
ABH15	5	50	100	150	200	250	300	350	400	450	500	550
ABH20 (3lobes)	7.65	76.5	153	229.5	306	382.5	459	535.5	612	688.5	765	841.5
ABH20	8.5	85	170	255	340	425	510	595	680	765	850	935
ABH25	16	160	320	480	640	800	960	1120	1280	1440	1600	1760
ABH32	40	400	800	1200	1600	2000	2400	2800	3200	3600	4000	4400
ABH40	56	560	1120	1680	2240	2800	3360	3820	4480	5040	5600	6160
ABH50	158	1580	3160	4740	6320	7900	9480	11060	12640	14220
ABH60	230	2300	4600	6900	9200	11500	13800	16100	18400	20700
ABH65	328	3280	6560	9840	13120	16400	19680	22960	26240	29520
ABH80	780	7800	15600	23400	31200	39000
ABH100	1300	13000	26000	39000	52000	65000
ABH280	1560	15600	31200	46800	62400	78000
ABH2100	2600	26000	52000	78000	104000	130000
