Hose pump

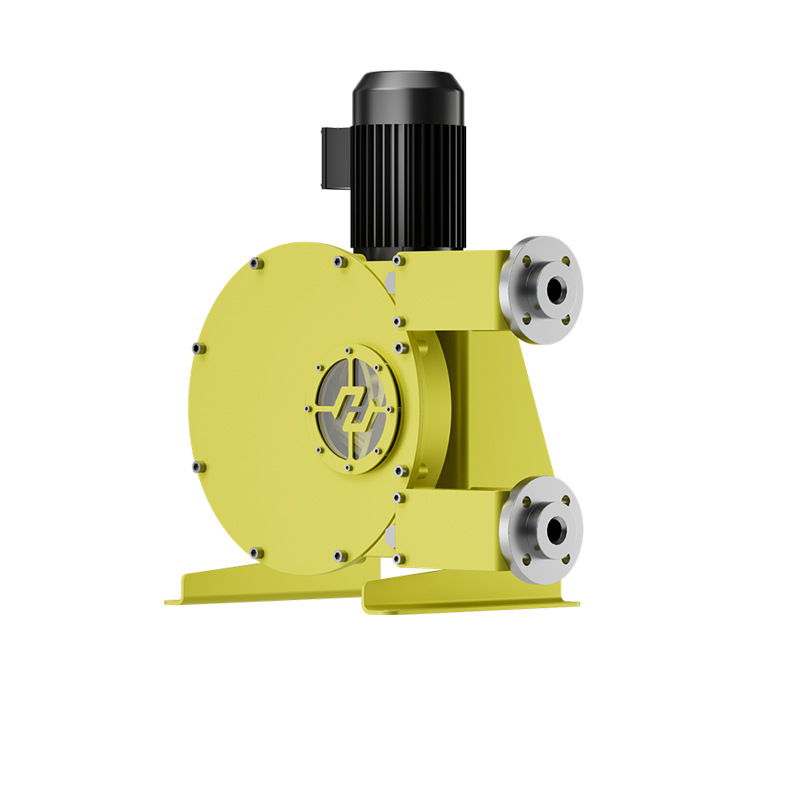

ABP Series Hose Pump

The ABP series uses Tygoprene hoses for high corrosion resistance. It employs a roller compression structure, resulting in lower friction, less heat generation, and extended hose life.

Inquiry Now

Product Introduction

> Integrally cast, fully sealed head, ductile iron material.

> Circular cover and sight glass.

> Gland packing seals at inlet/outlet ports.

> Rolling compression, with specialized lubricant.

> Expansion bushing connection.

> Leakage alarm.

Technical Data

Flow Curve Table (L/h)

Model	1rpm	10rpm	20rpm	30rpm	40rpm	5rpm	60rpm	70rpm	80rpm	90rpm	100rpm	110rpm
ABP09	1.3	13	26	39	52	65	78	91	104	117	130	143
ABP13	2.5	25	50	75	100	125	150	175	200	225	150	275
ABP17	7.2	72	144	216	288	360	432	504	576	648	720	792
ABP25	18.5	185	370	555	740	925	1110	1295	1480	1665	1850	2035
ABP30	37	370	740	1110	1480	1850	2220	2590	2960	3330	3700	4070
ABP45	132	1320	2640	3960	5280	6600	7920	9240	10560	11880	13200	14520
