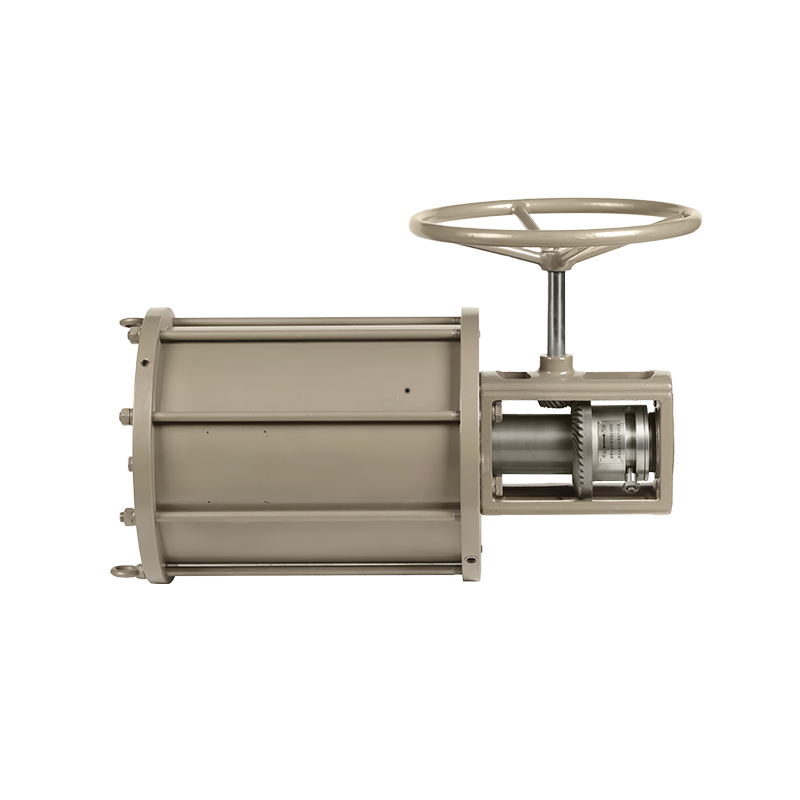

HPL Series Piston Pneumatic Actuators

The HPL series piston type pneumatic actuator is a linear actuator that delivers high output force and long stroke. Recognized by the market for its reliable performance, simple operation, and easy maintenance, it is widely used with linear movement valves such as gate valves and globe valves.

Inquiry Now

Product Introduction

> High Thrust Output:The HPL series pneumatic actuator employs a dual-piston structure design to deliver greater thrust, ensuring smooth valve operation without jamming.

> Wear and Corrosion Resistance: The cylinder is constructed from cold-drawn hydraulic tubing, honed and hard chrome-plated to significantly enhance the actuator's wear resistance and corrosion protection.

> Excellent Protection Performance: The HPL series pneumatic actuator meets IP67 protection standard, with cylinder seals using imported NBR O-rings to prevent ingress of external moisture and contaminating dust,ensuring stable and reliable performance with extended service life.

> Universal Connection Standard: The mounting dimensions for valve connections comply with ISO 5211 requirements, giving the HPL series actuators excellent interchangeability.

> Versatile Control Solutions: Hankun possesses extensive experience in pneumatic control and can custom-design pneumatic systems according to customers’ process control requirements.

Technical Data

Double-Acting Thrust Table

Diameter mm	3bar	4bar	5bar	6bar	7bar
125	2250	3000	3750	4500	5250
140	3000	4000	5000	6000	7000
160	3750	5000	6250	7500	8750
180	6750	9000	11250	13500	15750
200	9000	12000	15000	18000	21000
220	11250	15000	18750	22500	26250
250	13500	18000	22500	27000	31500
280	15000	20000	25000	30000	35000
300	18750	25000	31250	37500	43750
320	22500	30000	37500	45000	52500
350	28500	38000	47500	57000	66500
400	37500	50000	62500	75000	87500
450	47250	63000	78750	94500	110250
500	58500	78000	97500	117000	136500
550	70500	94000	117500	141000	164500
600	82500	11000	137500	165000	192500
650	97500	130000	162500	195000	227500
700	112500	150000	187500	225000	262500

Note: The HPL Series single-acting actuators are customized products.

Model Designation

Information	Series	Model	Travel	Action Type	Handwheel	Ambient Temperature
Code	HPL	80	10	DA-FL	Lead Screw-SM	HT-High Temperature (-20~+120℃)
		……	……	SRC-FC	Bevel Gear Stem-GM	Standard Temperature (-20~+80℃)
		900	100	SRO-FO	Hydraulic-HM	LT-Low Temperature (-40~+80℃)
						ULT-Ultra Low Temperature (-60~+40℃)
Example	HPL200-50-SRC-SM-ULT
